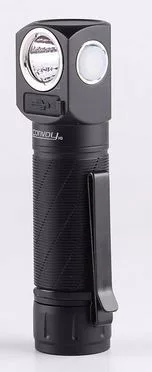

Convoy H3 SST40 2400 lumens headlight

Parameter:

• LED: SST40
• Luminous flux:  SST40 2400LM
• Mode: see detailed description later
• Brightness memory: Yes

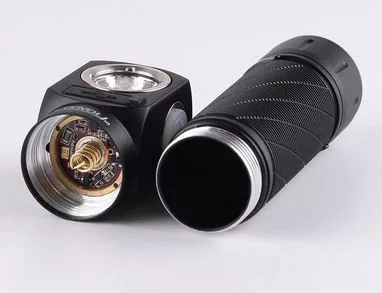

• Battery: 1 * 21700 flat head without protection board (not included)
• Material: aluminum alloy
• Colour: Black
• Waterproof rating: IPX4
• Driver: output 6amps , temp control
• Switch type: electronic switch (with standby current ,around 32μA)

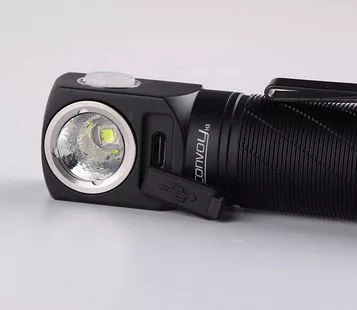

• Charging port: TYPE-C charging interface, charging current 2A, the product does not include a charging cable.
• Reflector type: orange peel
• Lens: ar-coated glass
• Size: 25.6mm (diameter), 114mm (length)
• Net weight of the flashlight: 88g (without packaging, batteries, headlight straps, and holding clips)

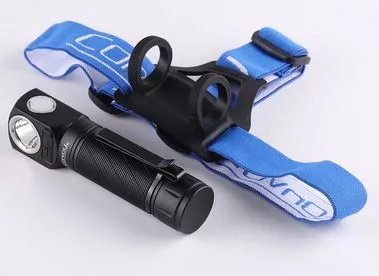

• Included accessories: 1*blue headlight belt, 1*holding clip

Mode operation instructions:

1.click the button  ——>  flashlight is turned on with last brightness ——> press the button,brightness ramping up ——> release and press the button again,brightness ramping down

2.flashlight off, press the button  ——>  moonlight mode  [This brightness will not be remembered]

3.flashlight on or off, 2-click the button  ——>  turbo 100%

4.flashlight off,3-click the button   ——>  strobe

5.flashlight off,4-click the button   ——>  tactical mode, only 100% ,4-click the button again to quit tactical mode.

6.flashlight off,5-click the button   ——>  voltage detection  (* means "flash" ,  *** pause ******* means 3.7V, )

7.flashlight off,6-click the button   ——>  normal ramping mode switch to 4modes 1%-10%-40%-100%

8.flashlight off,10-click the button   ——>  Lock mode,The flashlight will flash once under any operation, which means the flashlight is locked.10-click the button again to quit lock mode,Please note that this is the only way to unlock.

 The flashlight has low voltage protection and temperature control protection.
