Specifications
Emitter:High-powered LED
Battery Option: Built-in lithium-ion polymer battery
Working Voltage: 3V-4.2V
Maximum Charging Current: 1A
USB Type-C charging
Tail Dual E-Switch
Material: AL6061-T6 aluminium alloy
Water Resistance: IP67waterproof

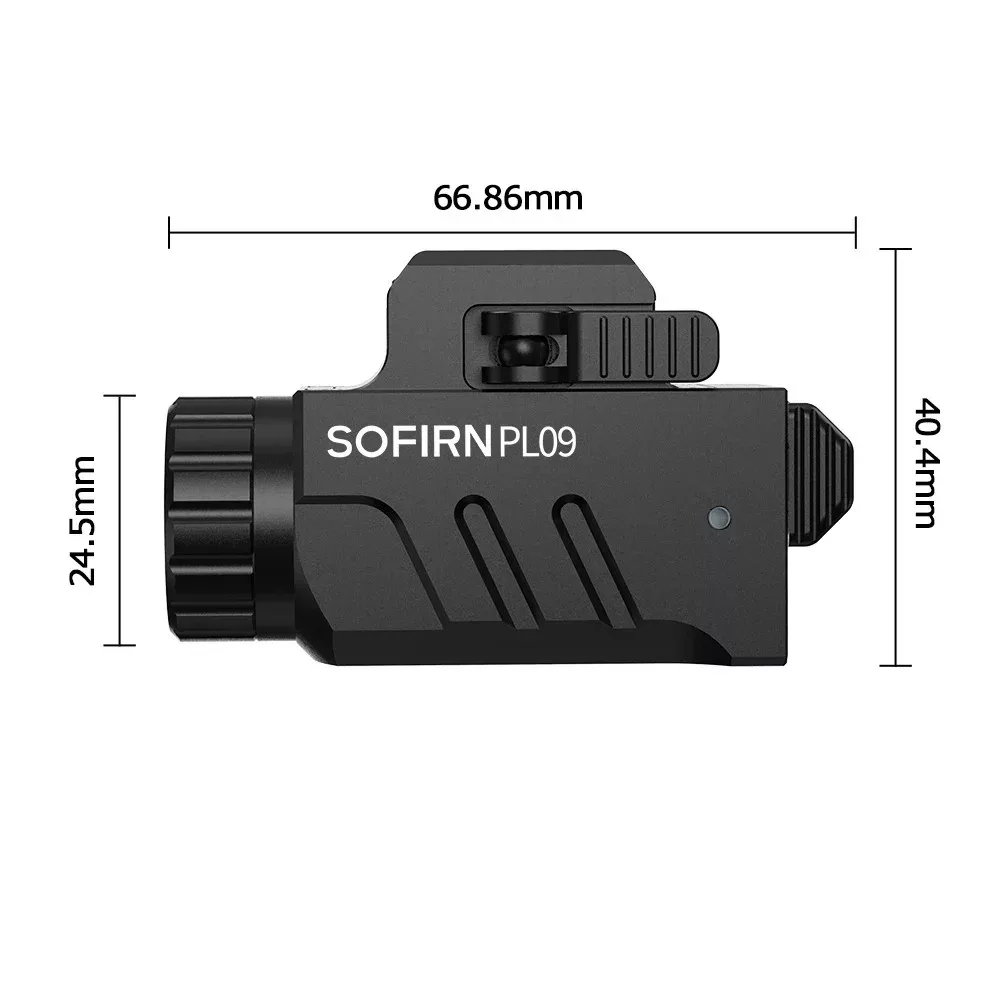

Size: 66.9*33.5*40.4*mm
Weight: 91g
Low Voltage Protection: Automatically detects battery level when turned on and red indicator flashes when the battery is poor. The flashlight automatically turns off when the battery voltage is critical.
General Operation
ON/OFF: Press either button to turn the light on/off.
DIRECT ACCESS TO TURBO: When the light is off, press either button to Turbo. For momentary on, when the light is off, press and hold either button for more than 0.3 seconds. Let go of the button to turn it off.
DIRECT ACCESS TO STROBE: In either mode (not in lockout mode), fast double press either button to activate Strobe. Single press either button to go back to the last used mode.
LOCKOUT: When the weaponlight is off, press and hold the two buttons at the same time for 3 seconds, the green indicator flashes twice to indicate that it is in lockout mode. This way, pressing any button will cause nothing to happen, but the green indicator flashes twice to remind you.
UNLOCK: When the flashlight is off, press and hold the two buttons at the same time for 3 seconds to disable the lockout mode and turn the light on.
Battery Level Indicator
After turning on the PL09, the red indicator flashes when the battery level is lower than 25%, which reminds you to get it recharged in time.
Equipped with a Type-C charging port, the charging current is up to 1A, and it takes about 1 hour to fully charge.
