Specification:

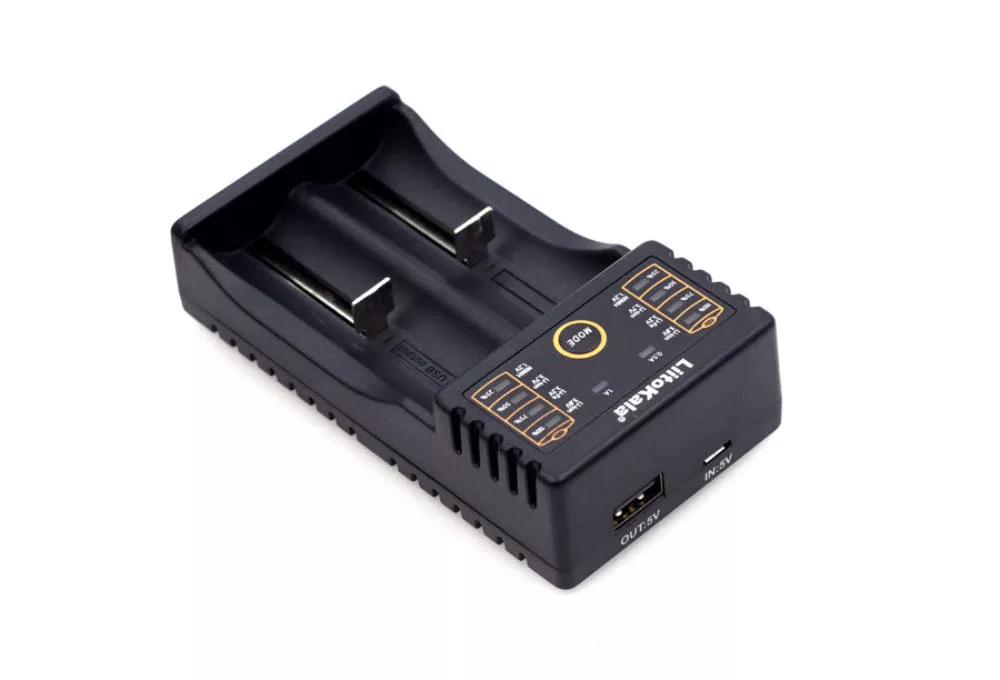

Product name: liitokala lii-202 5V 2A Micro USB Charger
Input: Micro USB DC 5V/2A
Output: 1.4V , 4.2V±0.05V , 3.65±0.05V , 4.35±0.05V
Output current: 500/1000mAh
Constant voltage charging, cutoff current: < 100mAh
Standby current:<15mAh

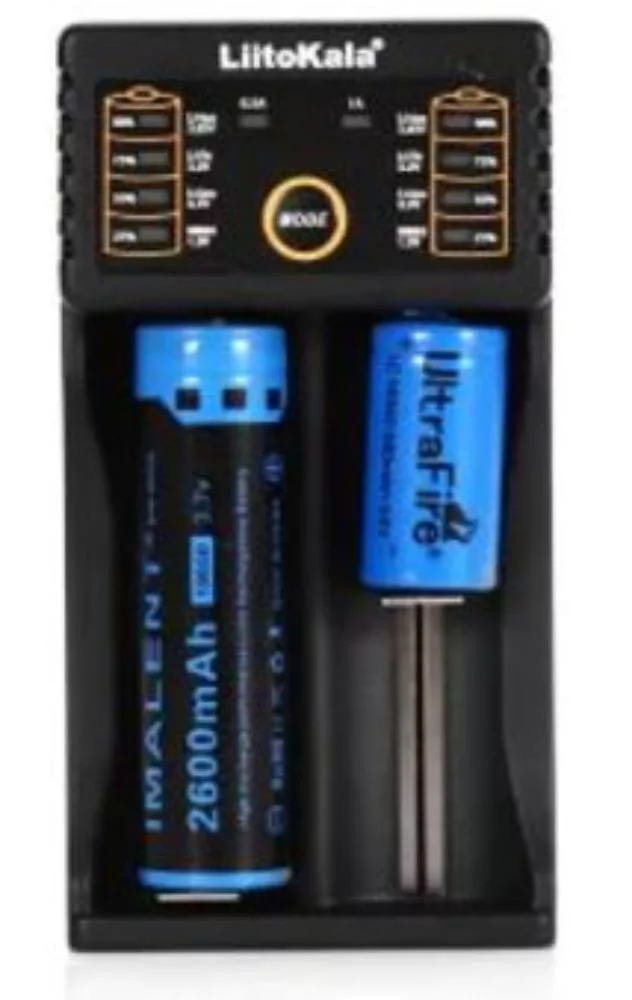

Compatibility: Li-ion/IMR: 26650,22650,26550,18650,18490,17670,17500,17355,16340,14500,10440
Size:112mm× 60mm×30mm/ 86grams + 15gram USB cable
USB Output Function
USB output no-load voltage: 4.90V-5.30V
Output current: 1000mAh (1A)
No-Load current: < 1mAh
The output voltage is 4.75V-5.25V when current is 1000mAh
Output protection voltage: 3.0±0.1V
Select Button, LED and function.
1.MODE Button:
Press the button to select the battery type when insert into a battery. It begin to charge the battery after fixing the battery type (please noted that it identify Li-ion and Ni-MH automatically, don’t need to select manually)
Press the button and hold it for 2 seconds whenever after connection to power, it can switch the charging current between 0.5A and 1.0A;
2.LED Indicator:
Connect the charger to power, all LED indicators will be on, when no battery insert after5 seconds, LED indicators will be off except the 0.5A current indictor
When battery is inserted into the charger, 4 LED indictors will be on and 3.7V LED indictors flicker, then, please click theMODE button to fix the correct battery type. It will begin to charge the battery 5 seconds later, and the LED indictors will show the charging status.
Press theMODE button to show the battery type( 5 seconds ) during charging and return to show the charging status
It can shows the battery’s remainingpower when put battery into the charger ( no connection with charging power)
USB output indictor: When USB output is detected, the battery volume indictors will be on for 10 seconds and then off, click the button to show the battery’s volume rate.
Features:
Micro USB DC 5V input, two independent slots and charging channels with built-in micro-computer management system to ensure the high efficiency
Two charging currentoptions (0.5A/1.0A)
Four LED indicators shows the charging status (25%, 50%, 75%, 100%) and also shows the battery type when insert into battery (1.2V Ni-MH , 3.2V Li-Fe, 3.7V Li-ion, 3.85V li-ion)
Identify Li-ion and Ni-MH automatically; But, you need to adjust the charge mode for LiFePO4 and 3.85V li-ion battery
It can active 0V rechargeable battery but the charger don’t charge 1.65V~1.85V battery types.
Buit withOver-charging protection, over-discharging protection and polar reverse protection.Also, it can identify broken battery.
Charingmode:instant current and voltage.
DC input charging: working power source at 5V-2A (Micro plug)
Standard automatical 5V/1000mAh USB outputport

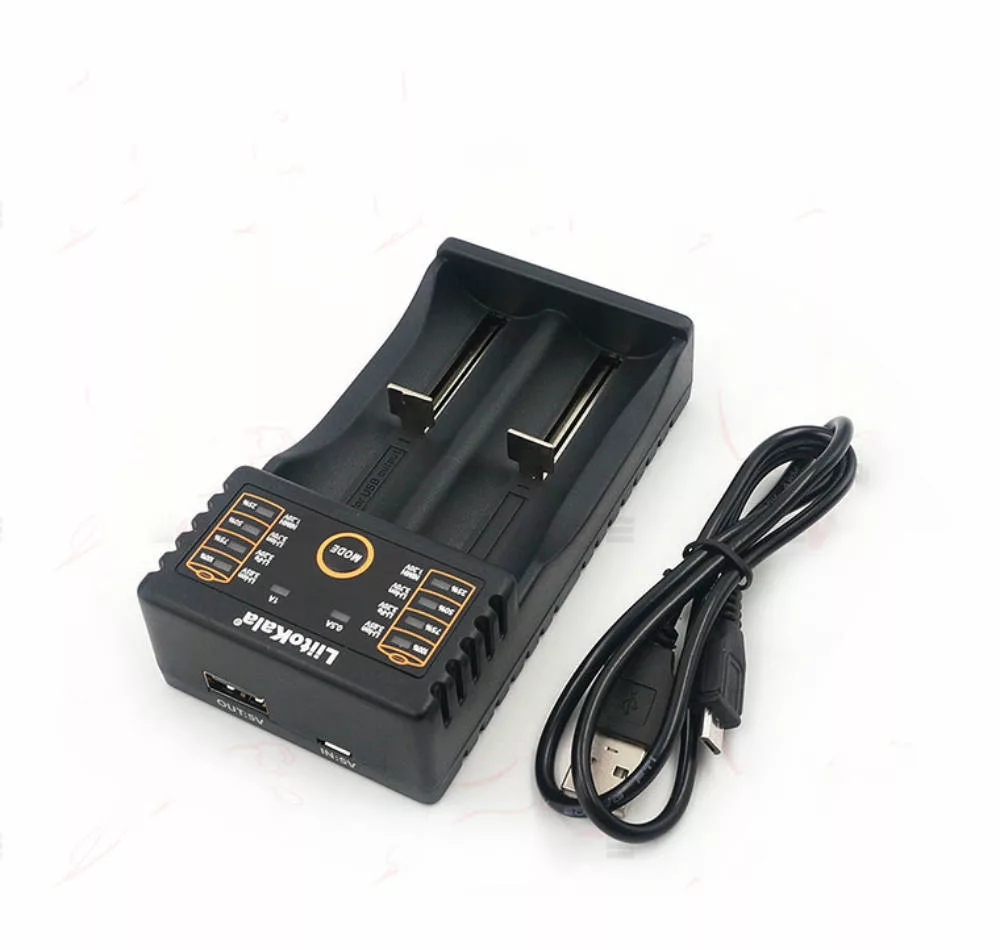

Package included:
1 x liitokala lii-202 5V 2A Micro USB Charger
1 x USB Charging Cable
