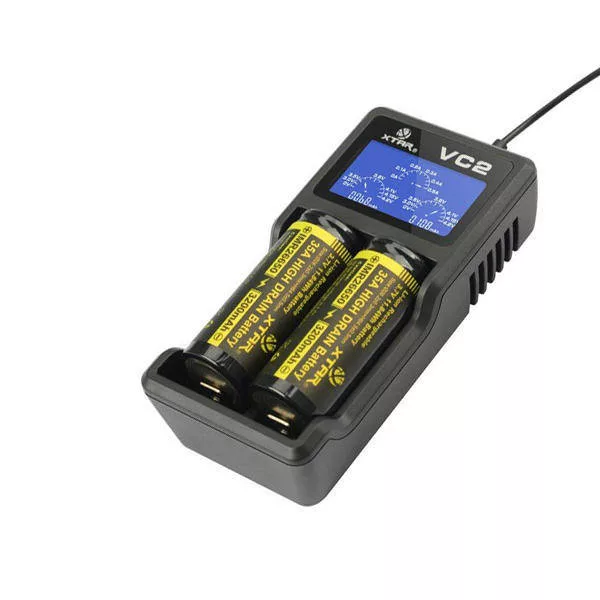

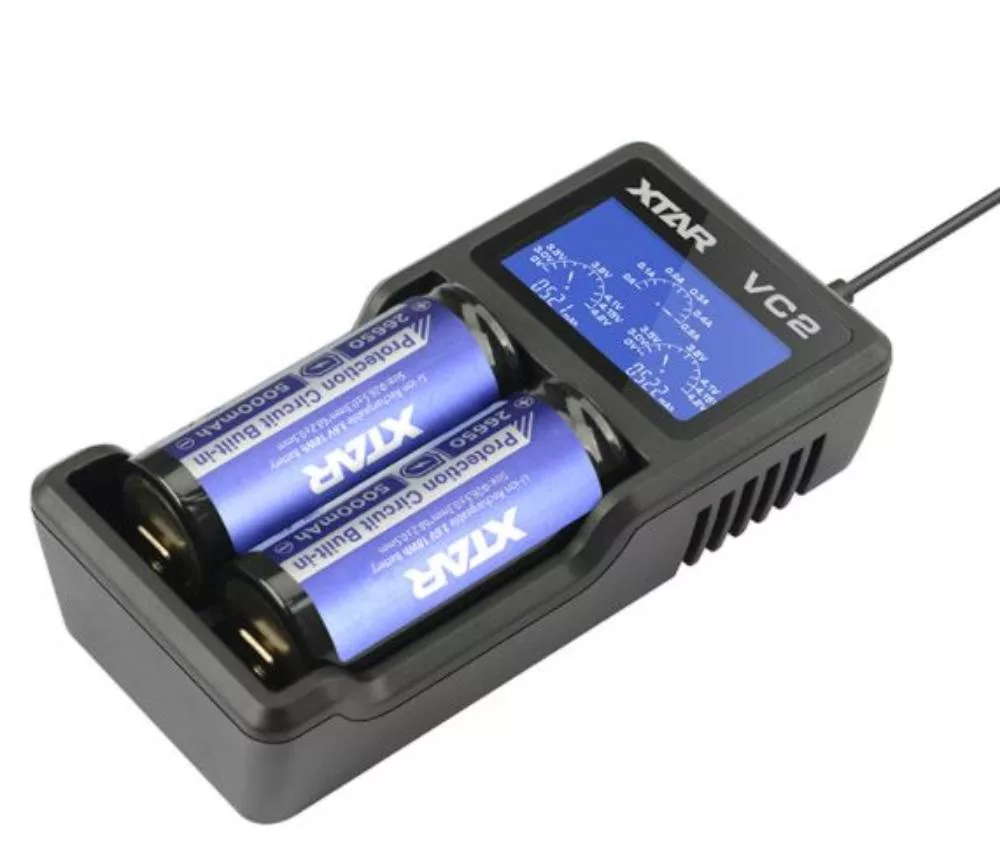

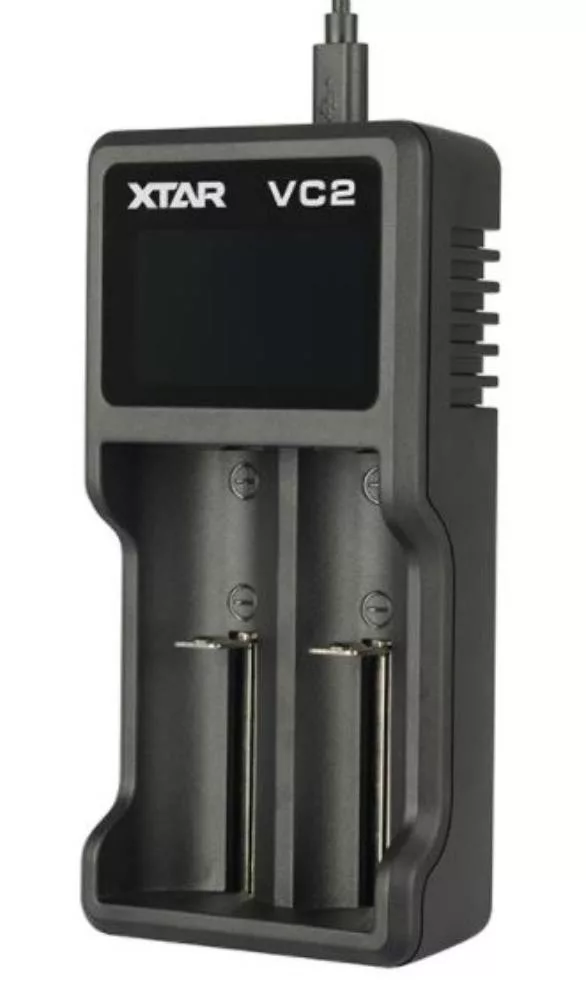

XTAR VC2 Charger

The XTAR VC2 charger for 10440/14500/14650/16340/17500/17670/18350/18500/18650/ 18700/22650/25500/26650 3.6/3.7V Li-ion batteries.
Features: Compatible with IMR lithium battery,
Each channel is independent - Three-stage charge algorithm(TC-CC-CV) - Soft-start function, to avoid damage from large charge current while charging. - Automatically cut off when the battery is charged fully - Precision cut-off voltage at 4.2V - Compatible with small capacity battery - Over heat protection - LCD displays
each battery real time statues - Use high power intelligent step-down DC - DC circuit, greatly reduce the energy loss; - Built-in reverse-polarity and short-circuit protection circuit
- Use fireproof material for the shell - 0V activation function can wake up the over-discharged/sleeping batteries - 120°angle high definition VA screen to display the charging current ,voltage and power indicator, you can see the charging status from any angle of view.
- Certified by CE, RoHS.
Specification:
Input Power: DC 5.0V 1.0A
Max Constant Charging Current: 500 ±50mA
Min Constant charging current: 150±50mA
Cut-off Voltage(Output Voltage): 4.20V±0.05V
Auto Recharging Threshold Value Voltage:
3.9V±0.15V
Cut-off Current: ≤80mA
Working Temperature: 0-40C°
Net Weight: 109g
Dimensions: L131*W66*H33mm

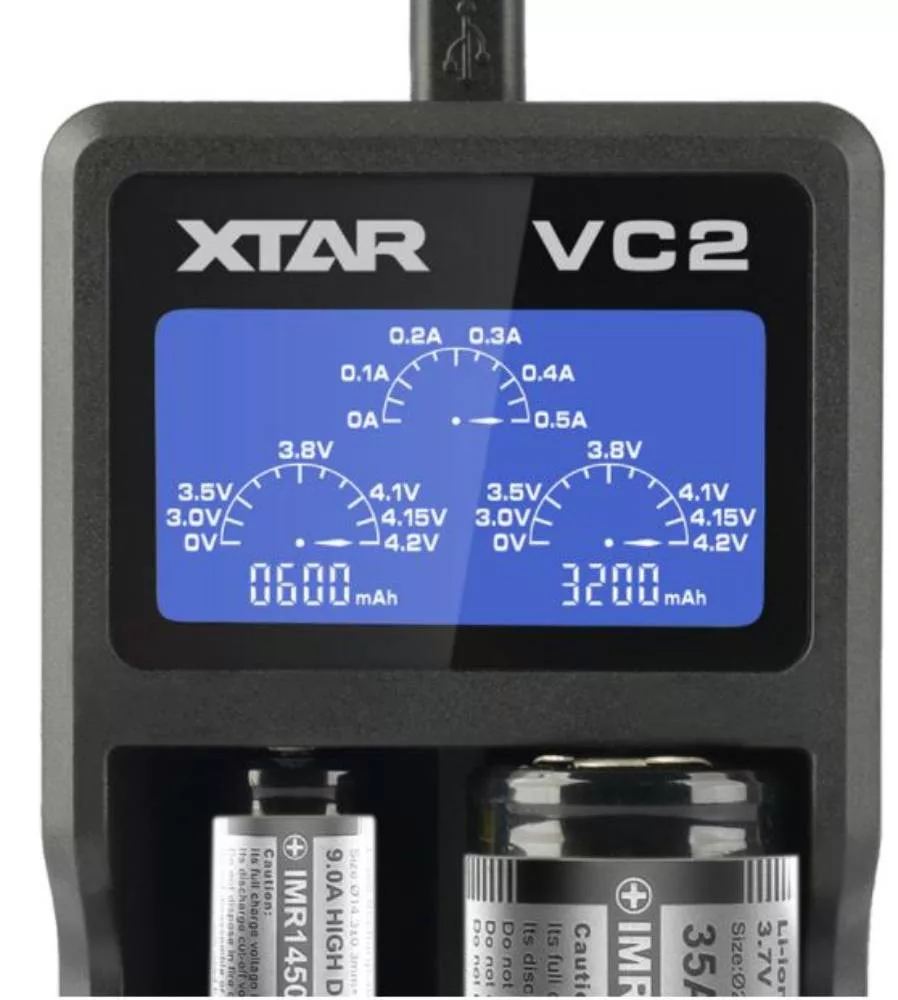

Experience the high tech: Can tell the real capacity of your batteries. Creative LCD screen displays charging current, battery voltage and charging capacity. Intelligently identify input power and automatically adjust suitable charging current from 0.15A to 0.5A to protect your charging device. Three stages of charging (TC-CC-CV) can prolong the lifespan of your batteries. Soft start can avoid sudden high current to prolong battery lifespan
Worry-free charging: Automatically stop charging when complete and restart charging function, so you can keep the batteries inside the charger overnight. 5V USB voltage, within the safety voltage ensures your safety. Intelligently identify bad/ Ni-MH batteries by showing “Null”, and identify short circuit and misinsertion by showing “Err”. ABS durable fireproof shell with perfect heat dissipation and high temperature resistance.
Without temperature rising or overheating
Save your money in a long run: Apply to 10440/14500/14650/16340/17500/17670/18350/18490/18500/18650/ 18700/22650/25500/26650 3.6V/3.7V Li-ion batteries and IMR batteries, no need to buy many chargers for different sizes of batteries. Two independent slots, one VC2 equal to two separate chargers. Compatible
with any USB power and wall adaptors, no need to buy extra adaptors. 0V activation function can rescue your over-discharged batteries. Normally you need to throw
away those over-discharged batteries, but with XTAR chargers you can rescue them and reuse them
Save your time: Independent two channels can charge two batteries at the same time. Know how full your batteries are – Each interval of battery voltage is about
10% of the battery capacity and you can clear know when your batteries can be fully charged. Smartly distinguish bad batteries or Ni-MH batteries in 10 minutes by showing “null” – Just spend 10 min to know the status of your batteries. Smartly notify you – The light of screen will flash 3 times in every 10 seconds when your batteries are full.
What‘s Included: VC2 charger, Micro-USB cable, Microfiber carrying pouch, User manual.

How to test your batteries mAh capacity:
Step 1: Insert your discharged battery (at a discharge cut-off voltage generally below 3.0V).
Step 2: Let the battery charge and notice the 0000mAh displayed on the screen. Do not remove the battery until the charge is complete.
Step 3: When the battery is fully charged, the screen will show „FULL“ and the entire screen will flash 3 times every 10 seconds.
Step 4: The mAh on the screen should now give you the batteries actual capacity.
