Specifications
- Light source: 1x 6500K cool white LED
- Light Modes: Low - Medium - High + Strobe
- Output: 1300 lm - 300 lm - 8 lm + 1300lm (20Hz) (powered by 14500 USB-C Li-ion Battery)
- Runtime: 2 min +1 hrs+4 hrs - 1hrs 30 min + 3hrs 50 min - 50 hrs (powered by 14500 USB-C Li-ion Battery)
- Battery: 1x 14500 li-ion / 1x Alkaline AA / 1x Ni-MH AA
- Max Beam Distance: 148 meters (485.56 feet)
- Working Voltage: 0.9 V - 4.2 V

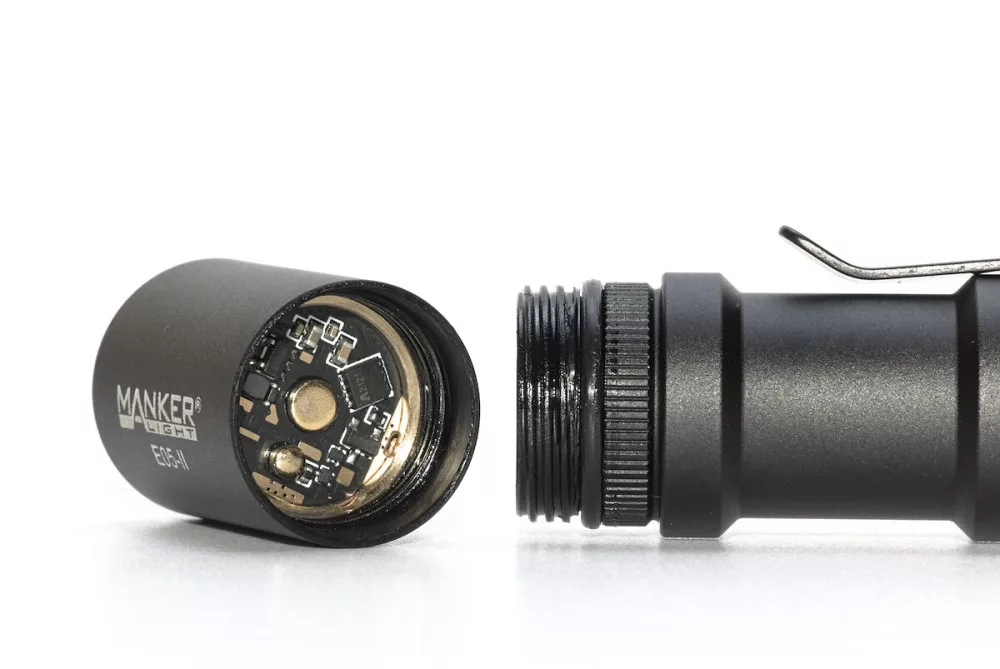

- High efficiency constant current circuit
- Aerospace aluminum alloy with type III hard anodized
- Clip Type: Deep carry clip
- Clip Material: 304 stainless steel with PVD black plated
- Button Material: Aerospace aluminum alloy with type III hard anodized
- Contact Spring Retainer Material: phosphore bronze
- Lens: Dual-sided AR coated, 99% transmittance toughened Glass
- Orangepeel Reflector
- Switch Type: Forward-click Switch (mechanical switch)
- Tritium: 1 slots in button cap. (fit for 6*1.5 mm)
- Size: 91.35mm (length) x ø17mm (min body dia.) x ø20mm (head dia.)
- Weight: 63.8 g (included 14500 battery)
- Impact Resistance: 1.5 meters
- Waterproof: IP68 rated, tested 2 meter underwater for 60 minute

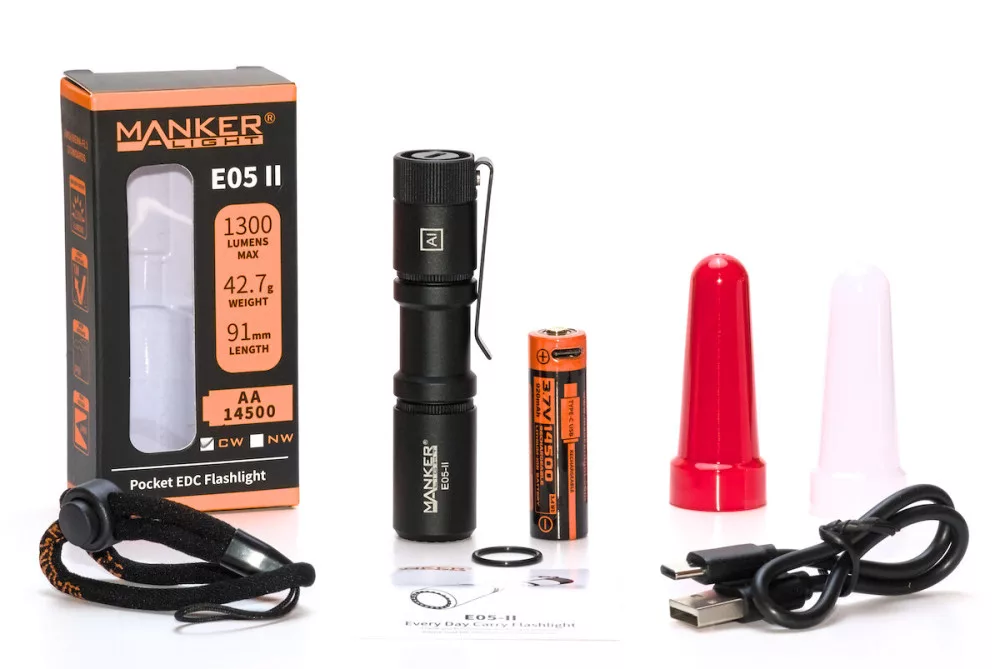

Package content
1x Mankerlight E05 II 6500K cool white LED flashlight
1x Mankerlight 920 mAh protected 14500 lithium battery with Type-C USB port
1x Type-C USB charging cable
1x Lanyard
1x Spare waterproof o-ring

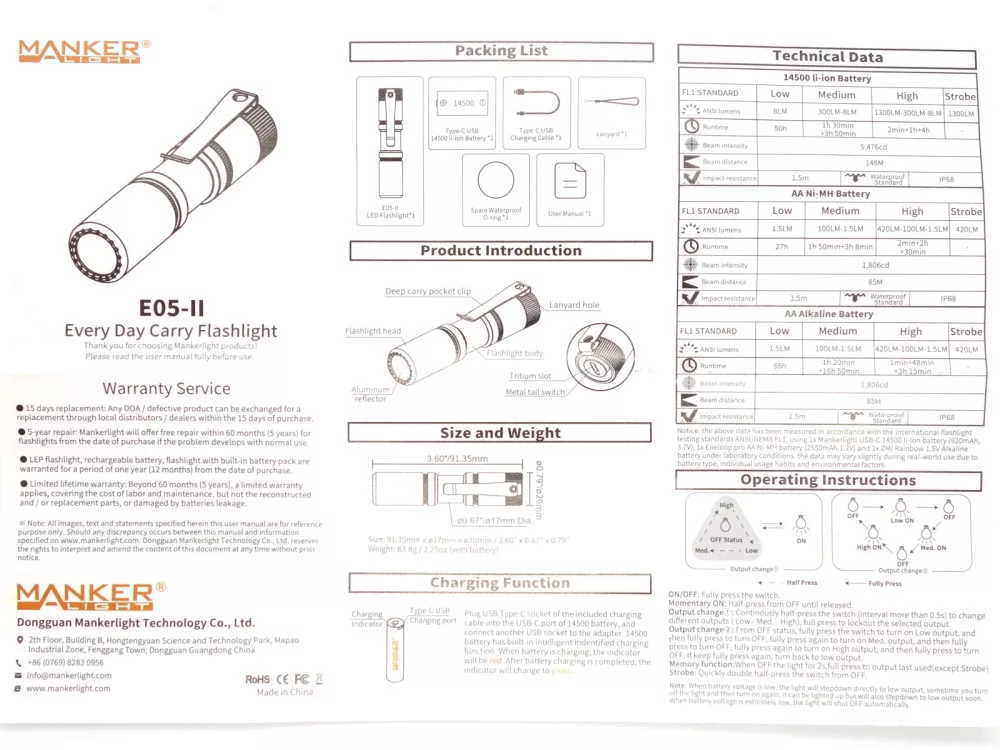

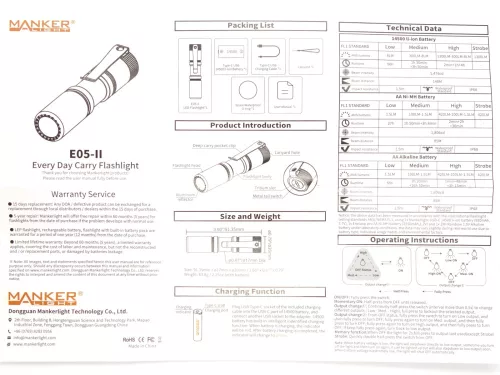

1x User manual
Operating Instructions
- ON/OFF: Fully press the switch.
- Momentary ON: Half-press from OFF until released.
- Output change①: Continously half-press the switch (interval more than 0.5 second) to change different outputs ( Low - Med. - High), full press to lockout the selected output.
- Output change②: From OFF status, fully press the switch to turn on Low output, and then fully press to turn OFF; fully press again to turn on Med. output, and then fully press to turn OFF; fully press again to turn on High output, and then fully press to turn OFF; If keep fully press again, turn back to low output.
- Memory function: When OFF the light for 2 seconds, full press to output last used (except Strobe)
Strobe: Quickly double half-press the switch from OFF.
Note: When battery voltage is low, the light will step-down directly to low output, sometime you turn off the light and then turn on again, it can be lighted up but will also step-down to low output soon. When battery voltage is extremely low, the light will shut OFF automatically.
Battery Charging

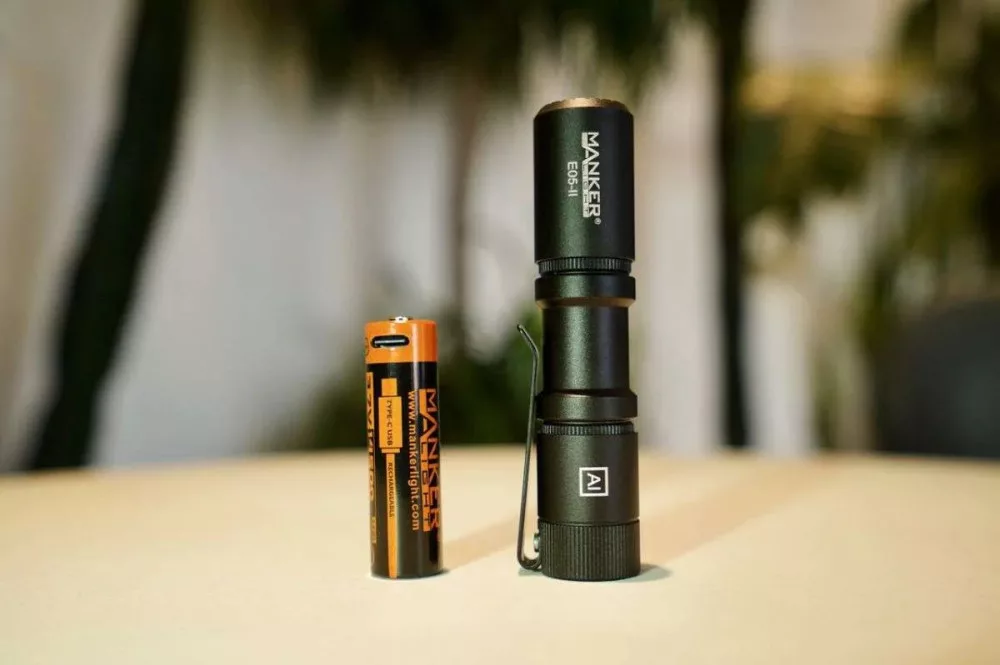

- E05 II Ti comes with one Mankerlight 920mAh 14500 li-ion battery with a built-in Type-C USB charging port.
- Our 14500 battery support fast charging USB-C charger (such as QC,PD) and also works via USB-C to USB-C charging.
- Battery charging indicator: plug USB Type-C socket of the included charging cable into the USB-C port of 14500 battery, and connect another USB socket to the adapter. our 14500 battery has built-in intelligent identified charging function.
- When battery is charging, the indicator will be red. After battery charging is completed, the indicator will change to green.
- Fully charging time: about 2 hours via universal charging adapter
Technical Data of 6500K Cool White
- Powered by Mankerlight 14500 USB-C li-ion battery:
- Low: 8 lumens, 50 hours
- Medium: 300 lumens ~ 8 lumens 1 hrs 30 minutes + 3 hrs 50 minutes
- High: 1,300 lumens ~ 300 lumens ~ 8 lumens, 2 minutes + 1 hours +4 hours
- Strobe: 1,300 lumens 20Hz
- Beam intensity: 5,476 cd
- Beam distance: 148 meters
- Impact resistance: 1.5 meters
- Waterproof standard: IP68, 2meters underwater for 60 minutes
- Powered by AA Ni-MH Battery:
- Low: 1.5 lumens, 27 hours
- Medium: 100 lumens ~ 1.5 lumens, 1 hours 50 minutes + 3 hours 3 minutes
- High: 420 lumens ~ 100 lumens ~ 1.5 lumens, 2 minutes + 2 hours + 30 minutes
- Strobe: 420 lumens 20Hz
- Beam intensity: 1,806 cd
- Beam distance: 85 meters
- Impact resistance: 1.5 meters
- Waterproof standard: IP68, 2 meters underwater for 60 minutes
- Powered by AA Alkaline Battery:
- Low: 1.5 lumens, 55 hours
- Medium: 100 lumens ~ 1.5 lumens, 1 hours 20 minutes + 16 hours 50 minutes
- High: 420 lumens ~ 100 lumens ~ 1.5 lumens, 1 minutes + 48 minutes + 3 hours 15 minutes
- Strobe: 420 lumens 20Hz
- Beam intensity: 1,806 cd
- Beam distance: 85 meters
- Impact resistance: 1.5 meters
- Waterproof standard: IP68, 2 meters underwater for 60 minutes
